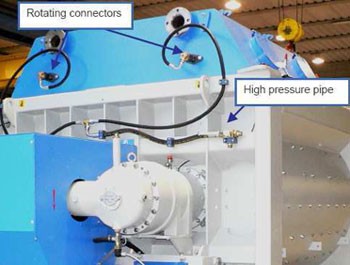

High Pressure Washout System for SICOMA Mixers Twin Shaft MAO with the following characteristics and accessories:

·2 Stainless Steel spray bars with High Pressure Nozzles placed above the shafts;

·1 gearmotor + toothed belt transmission and related limit switches for the rotation of the spraybars;

·2 rotating collectors to be connected to the High Pressure Unit;

High Pressure Unit as follows:

·For MAO 1500/1000 to MAO 7500/5000: 60 Bars Piston Pump, with 15 kW motor, 200 l reservoir with minimum, medium and maximum level, with electro valve;

·For MAO 9000/6000 to MAO 12000/8000: 80 Bars Piston Pump, with 22 kW motor, 400 l reservoir with minimum, medium and maximum level, with electro valve;

·Pipes for the connection between High Pressure Unit and the spray bars and hand spray gun;

·Hand spray gun for the manual washout at the end of each shift.

N.B.: The High Pressure Washout must be connected to the Control System. It is supplied without a manual control panel unless specifically required. We can supply the manual control panel (start/stop and electrical protections) on request, part number +QEL##.
